ARTEX ELT 345 GPS / 406 / 121.5 WITH WHIP ANTENNA FAA TSO

Part #: 8102, 8102INT
Artex
Availability:

Available on backorder


$1,101.05

compare

Overview

Take to the skies with confidence with the ELT 345. This emergency locator transmitter is equipped via NAV interface, so if you run into an emergency, search and rescue teams will be given your aircraft location in less than a minute, within 100 meters. In addition to providing position accuracy, the ELT 345 transmits on 406 MHz and 121.5 MHz frequencies. Like all our products, this ELT is built to surpass industry standards, and ensure you’ll get the help you need. Be Prepared for the Unpredictable: – Manual and automatic activation – Two-wire remote switch – Flexible installation – Stainless steel mounting bracket – Built-in navigational interface
When an emergency happens, rely on the same brand that leading aircraft manufacturers trust for first-class quality, superior technology, and outstanding customer service. The new ARTEX ELT 345 is built to the industry’s most stringent quality management standards to ensure the ELT works the first time, every time. The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies while providing positon accuracy thanks to the built-in GPS navigational interface. GPS data is embedded within the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute. The ELT 345 boasts an industry low price for an ELT providing the same quality and performance on which the ARTEX brand was built.FAA TSO C126b approved.
Part: 8102, 8102INT Categories: , , , Tags: , ,
Weight 4.25 lbs
Dimensions 27.25 × 6 × 6 in
Select Model:

USA, International

Brands

Specifications

Model:

ELT 345

Product Number:

8102

Operating Frequencies:

406.040 MHz (+/- 1kHz) – Emission Designator 16K0G1D / 121.5 MHz (+/- 6.075 kHz) – Emission Designator 3K20A3X

Output Power:

406 MHz: 5 W for 24 hours @ -20°C to +55°C, 121.5 MHz: 50 mW for 50 hours @ -20°C to +55°C

Output Connector:

BNC Female

GPS:

Built-in GPS Navigational Interface (NMEA 0183 or RS 232)

Activation:

Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation

Battery:

6 year Lithium (LiMnO2), Replacement Battery Part No. 8322

Temperature Certified to:

Operating: -20°C to +55°C, Storage: -55°C to +85°C

Self Test Checks:

G-Switch Enabled, 406 MHz and 121.5 MHz Power, NAV system, Low Battery

Remote Control:

ON/ARM/TEST

Weight (with tray):

2.0 lbs (907.19 g)

Measurements:

ELT Transmitter with mounting hardware installed: 6.40 (L) x 2.96 (H) x 3.78” (W) inches (16.26 x 7.52 x 9.60 cm)

Approvals:

Cospas-Sarsat, FAA TSO, Industry Canada

Antenna:

Black Whip Antenna (P/N: 8324)

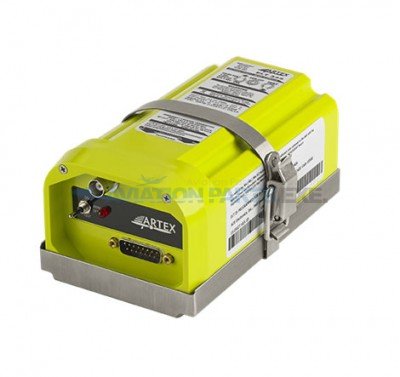

Mounting Tray and Strap:

P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations)

How it Works

  • The ARTEX ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options such as a two-wire remote switch that does not require any aircraft power. Because it is a single output ELT, the ELT 345 utilizes the same RF output and only one coax cable to transmit both 406 MHz and 121.5 MHz signals. The built-in navigational interface does not require aircraft power to operate which greatly reduces the cost of installation. The stainless steel mounting bracket has a multiple-hole pattern configuration which makes the replacement of legacy ARTEX ELTs or old ACK, Kannad and AmeriKing ELTs quick and easy.
  • Pair the ELT 345 with ARTEX’s exclusive online satellite confirmation testing system, 406Test.com, and get real-time beacon testing results, from the same satellites used by Search and Rescue, to ensure your ELT system is functioning properly. There is a reason that ARTEX ELTs are the choice of more aircraft manufacturers than any other; they trust ARTEX to build the highest quality products knowing they are used to save lives.

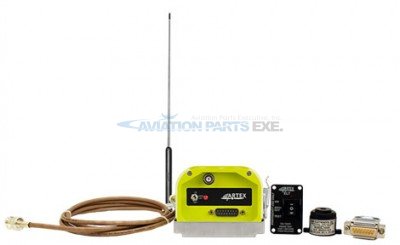

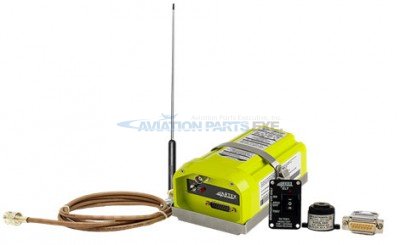

In The Box

  • ELT 345
  • Remote switch panel (Hookup wires not included)
  • Whip antenna – Rated to 250 knots
  • Coaxial cable
  • Mounting tray
  • Battery
